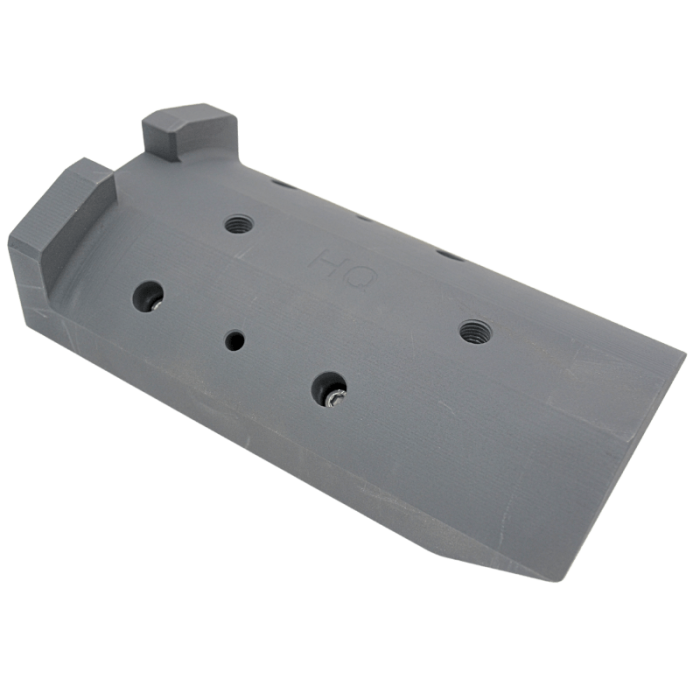

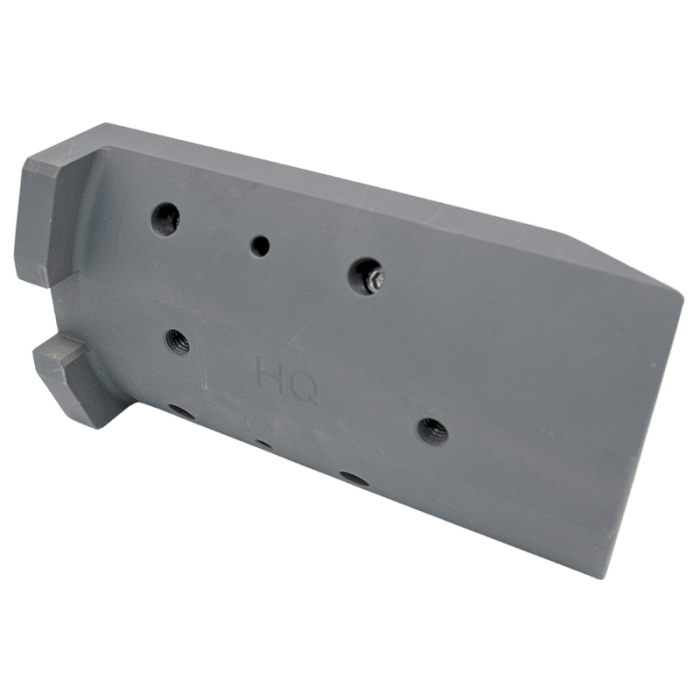

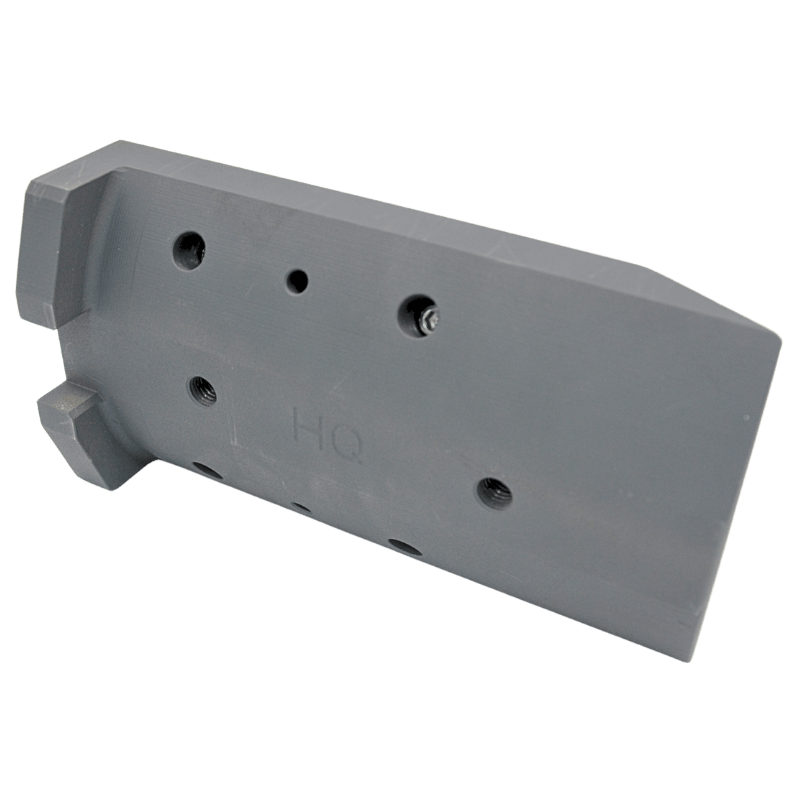

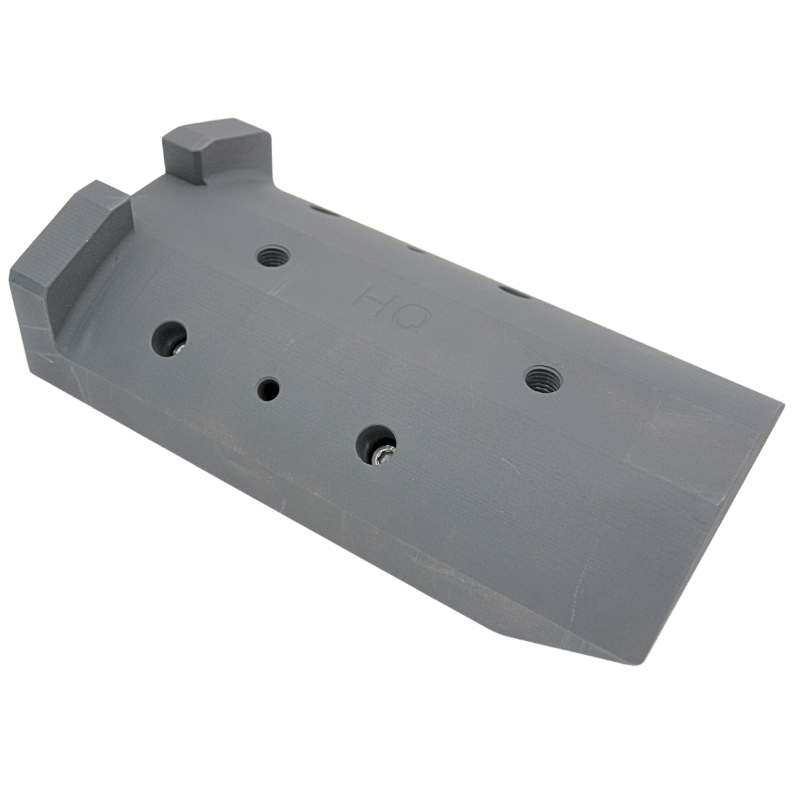

HQ Jaw Set
US$560.00
Our HQ Jaw is engineered for durability and precision in core drilling operations. Specifically designed to fit HQ size drill rods, this chuck jaw provides superior grip and reliability during drilling, ensuring minimal slippage and maximum control in the field.

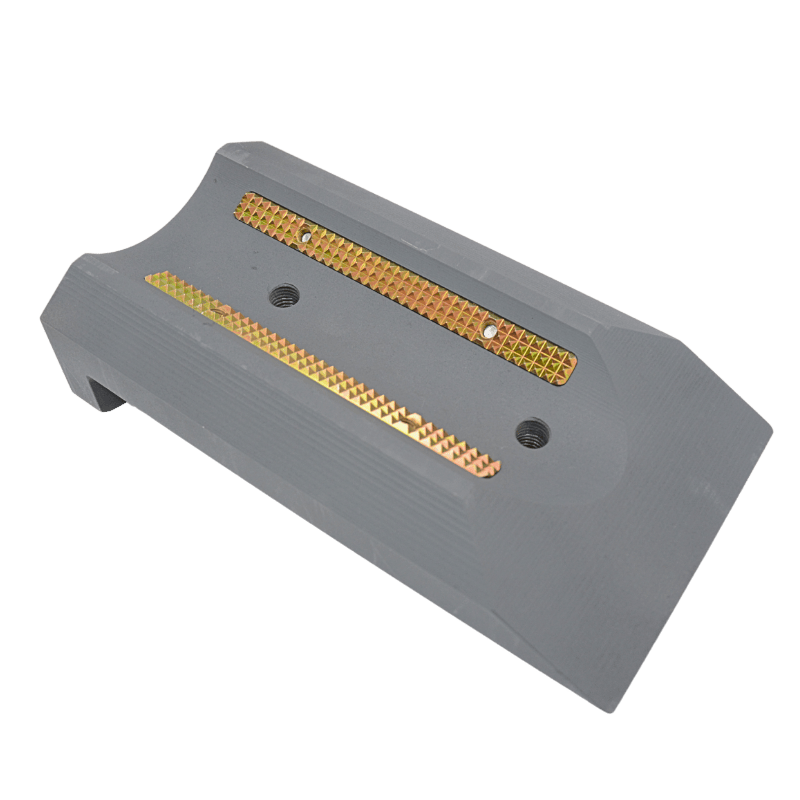

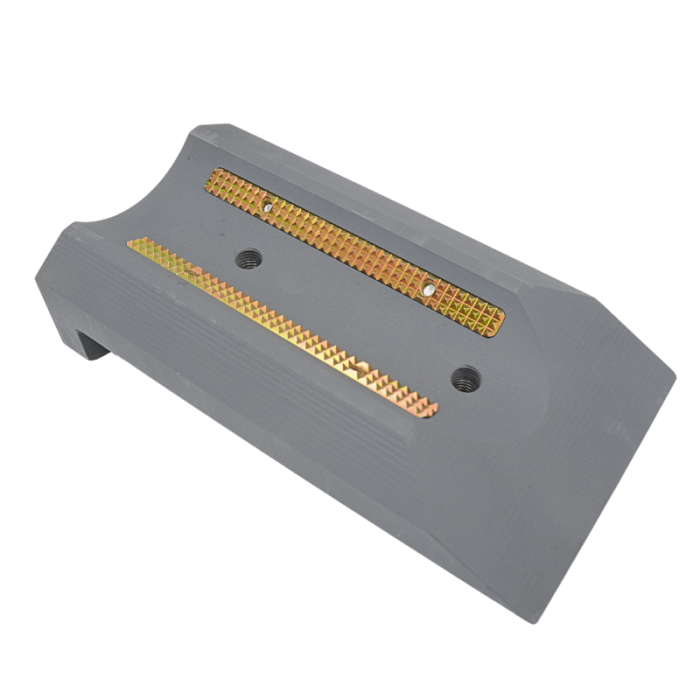

The Ipoh Casting footclamp jaws are a design variation based of the older brazed in carbide style. The jaw itself is machined from solid block steel in only 2 setups on out 5 axis CNC. Doing this results in a accurate and consistent gripping force onto the drill pipes. The teeth are machined from tool steel which has then been hardened to 55hrc. The advantage of this is that the teeth can be replaced in the field in minutes instead of having to bring a number of heavy spare jaws along. The teeth are the same across all sizes.
We have been selling our jaws for many years and have been constantly improving both reliability and manufacturing consistency.
This set comes with:
- HQ FOOTCLAMP JAW
- JAW TEETH INSERT
- M6 SPRING WASHER
- M6X16 SHCS
| Dimensions | 27 × 24 × 12 cm |
|---|---|
| Weight Per Set |
15 kg |
| Material |
0.4%c steel |
| Packaging |
Cardboard Carton |
| Finishing |
Undercoating |
